Digital Electronics
Boolean Algebra
Practice questions from Boolean Algebra.
2
Total0
Attempted0
Correct0
IncorrectA 3-input majority logic gate has inputs , and . The output F of the gate is logic '' if two or more of the inputs are logic ''. The output is logic ' ' if two or more of the inputs are logic '0'.
Which one of the following options is a Boolean expression of the output F ?
F=f(X,Y, Z)
F=1 for Two or More inputs are 1.
F=0 for Two or More inputs are 0.

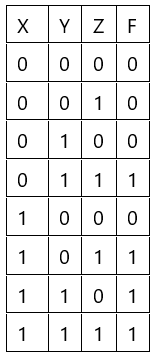

Truth Table:
Hence, option (a) is correct.
For the Boolean function
the essential prime implicants are________
,13,14,15)

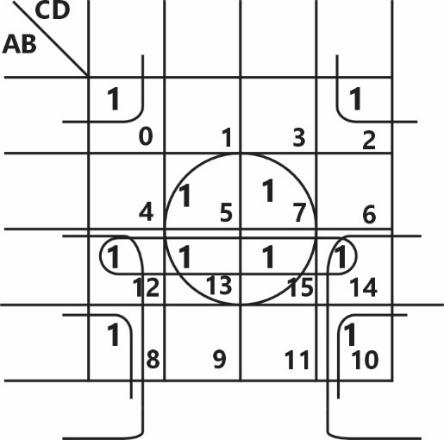

Given minterms can be plotted in K-Map as shown below,
EPI is a PI which contains at least one minterm which is not covered by any other PI
Two such PI are quad at the center and also the quad formed by minterms at the corners of the K-Map
