Network Analysis
Magnetically Coupled Circuits
Practice questions from Magnetically Coupled Circuits.
1
Total0
Attempted0
Correct0
Incorrect
Q#1
Magnetically Coupled Circuits
GATE EE 2024 (Set 1)
NAT
+2 marks
-0 marks

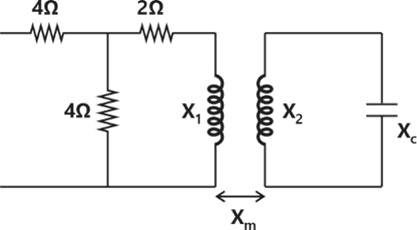

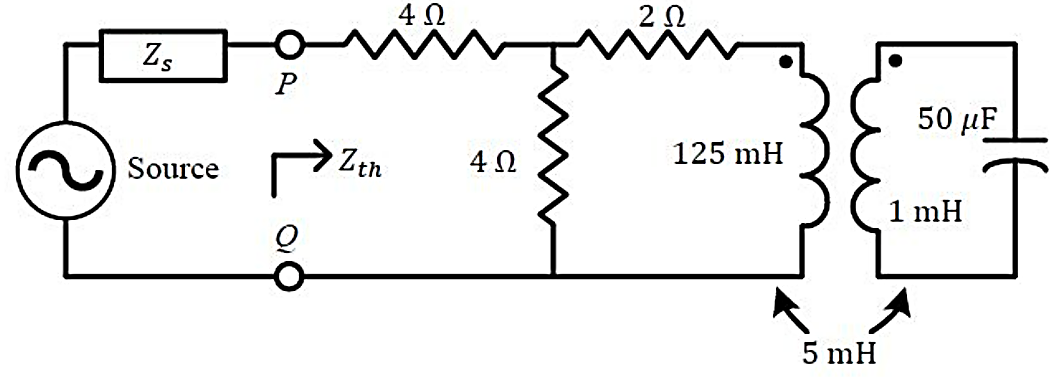

For the circuit shown in the figure, the source frequency is . The mutual inductance between the magnetically coupled inductors is with their self inductances being and . The Thevenin's impedance, , between the terminals and Q in is _______ (rounded off to 2 decimal places).
Explanation:
Based on T model of the transformer we can redraw the circuit as,
