Root Locus Technique

Practice questions from Root Locus Technique.

2
Total
0
Attempted
0%
0
Correct
0%
0
Incorrect
0%
Q#1 Root Locus Technique GATE EE 2025 (Set 1) MSQ +1 mark -0 marks

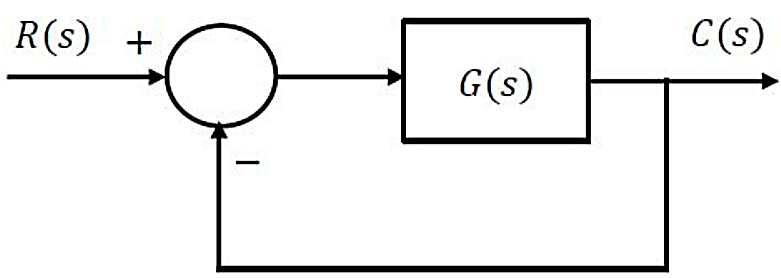

The open-loop transfer function of the system shown in the figure, is



For , which of the following real axis point(s) is/are on the root locus?

-1

-4

-6

-10

Explanation:



( Root locus lies on real axis when the sum of poles and zeros on its right side is odd).

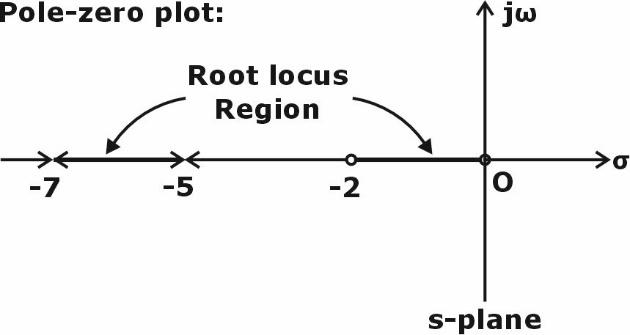

Root locus lies from  to  and  to .

from the given options, -1 and -6 lies on the Root locus.

Hence, option (a) & (c) is correct.

Q#2 Root Locus Technique GATE EE 2024 (Set 1) NAT +2 marks -0 marks

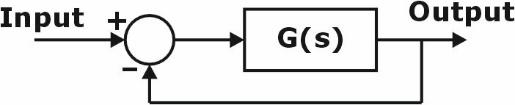

Consider the closed-loop system shown in the figure with

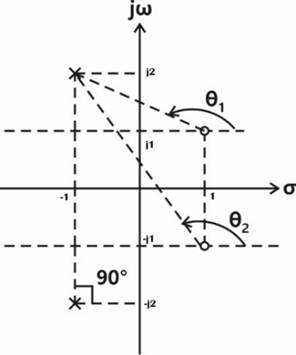

The root locus for the closed-loop system is to be drawn for . The angle of departure (between and ) of the root locus branch drawn from the pole , in degrees, is __________ (rounded off to the nearest integer)

Explanation:



Poles:

Zeroes:
